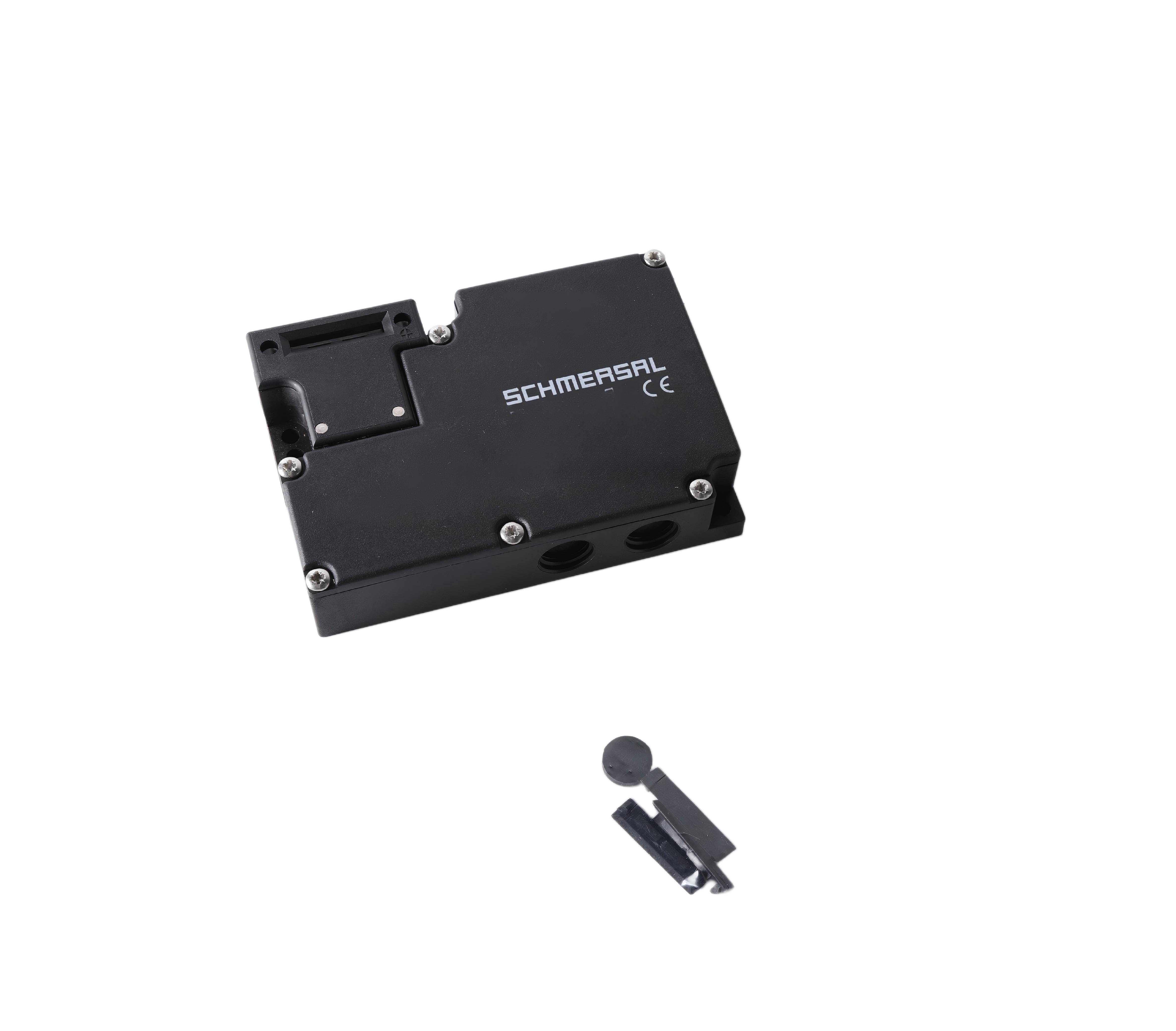

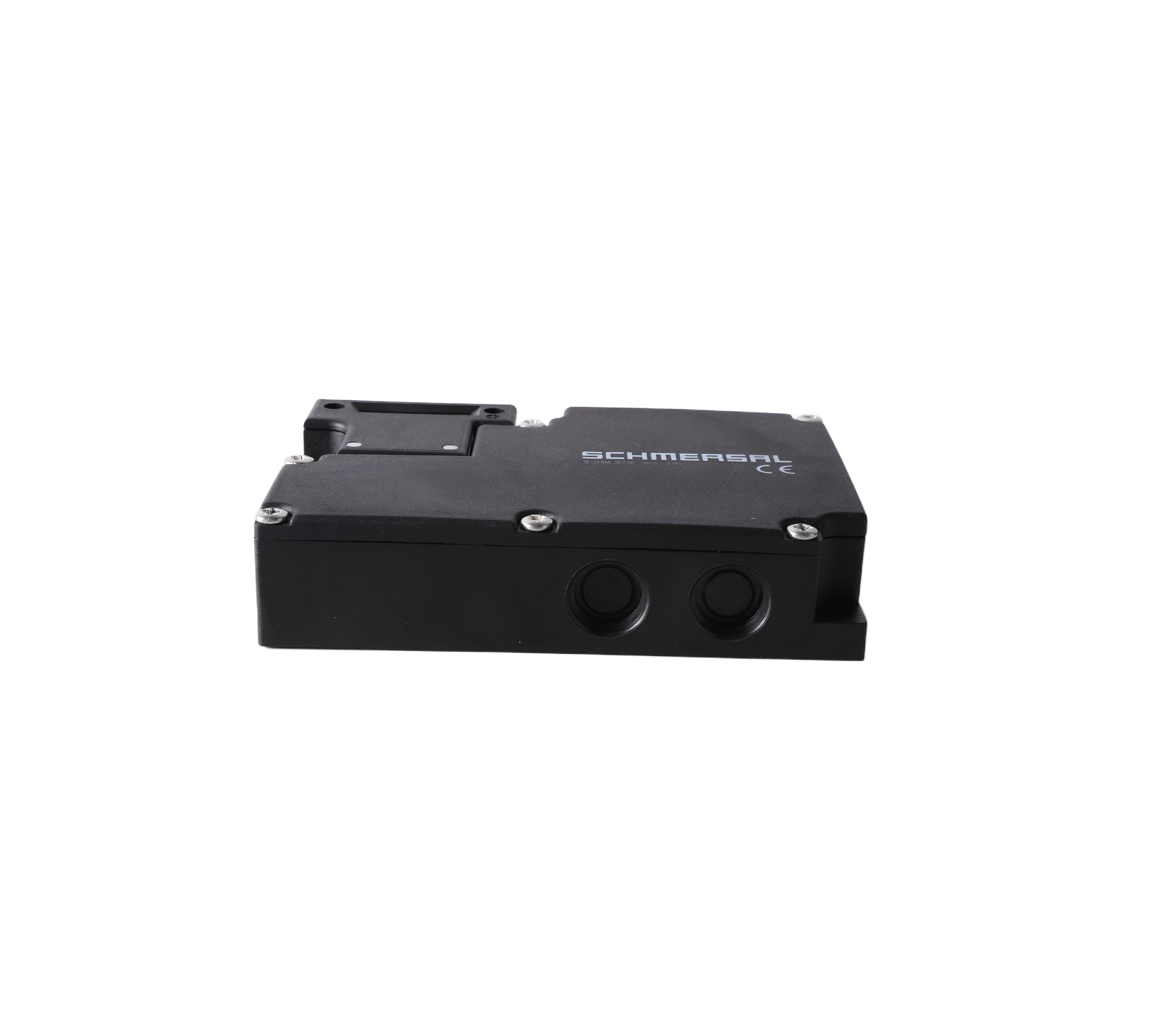

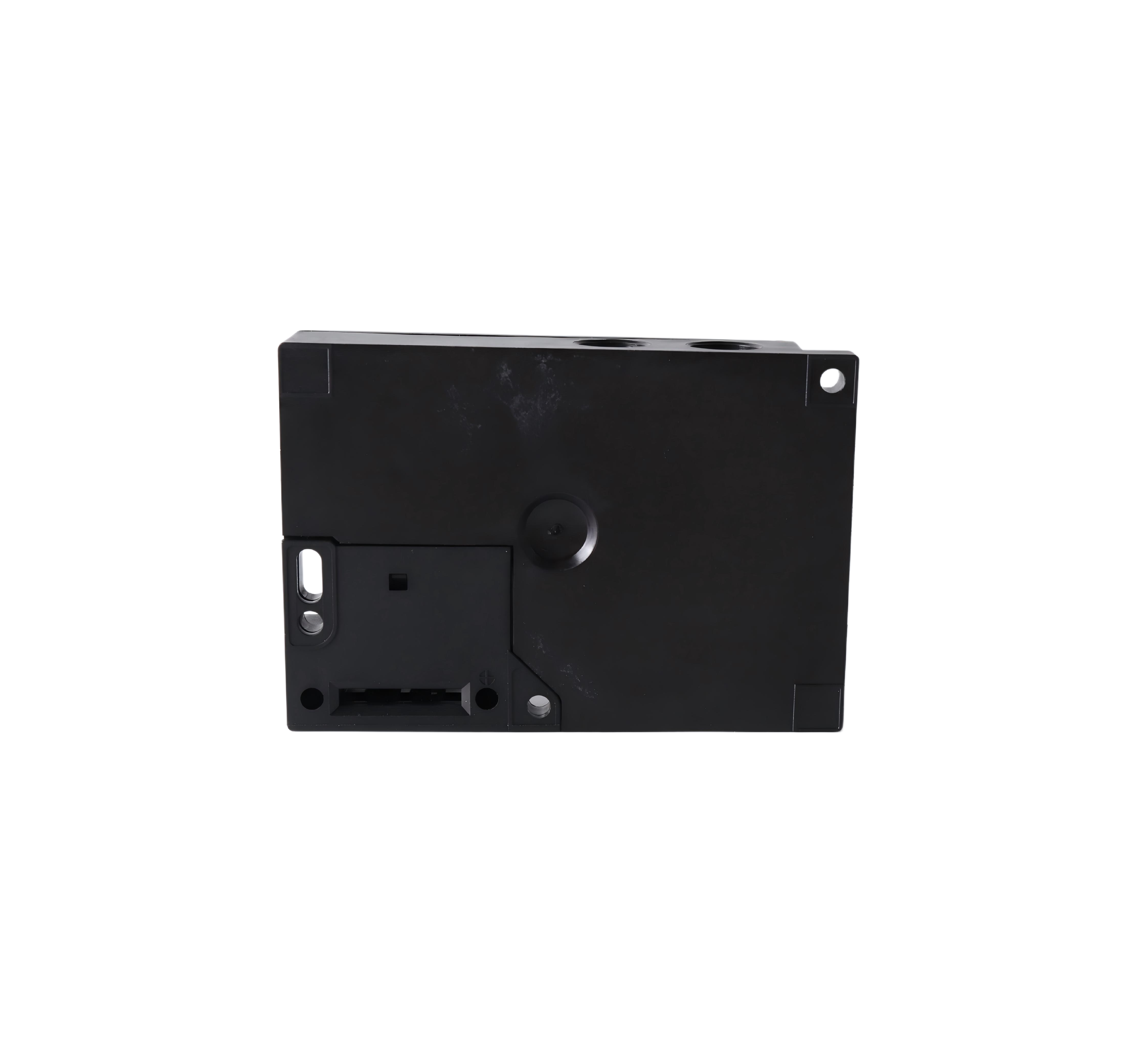

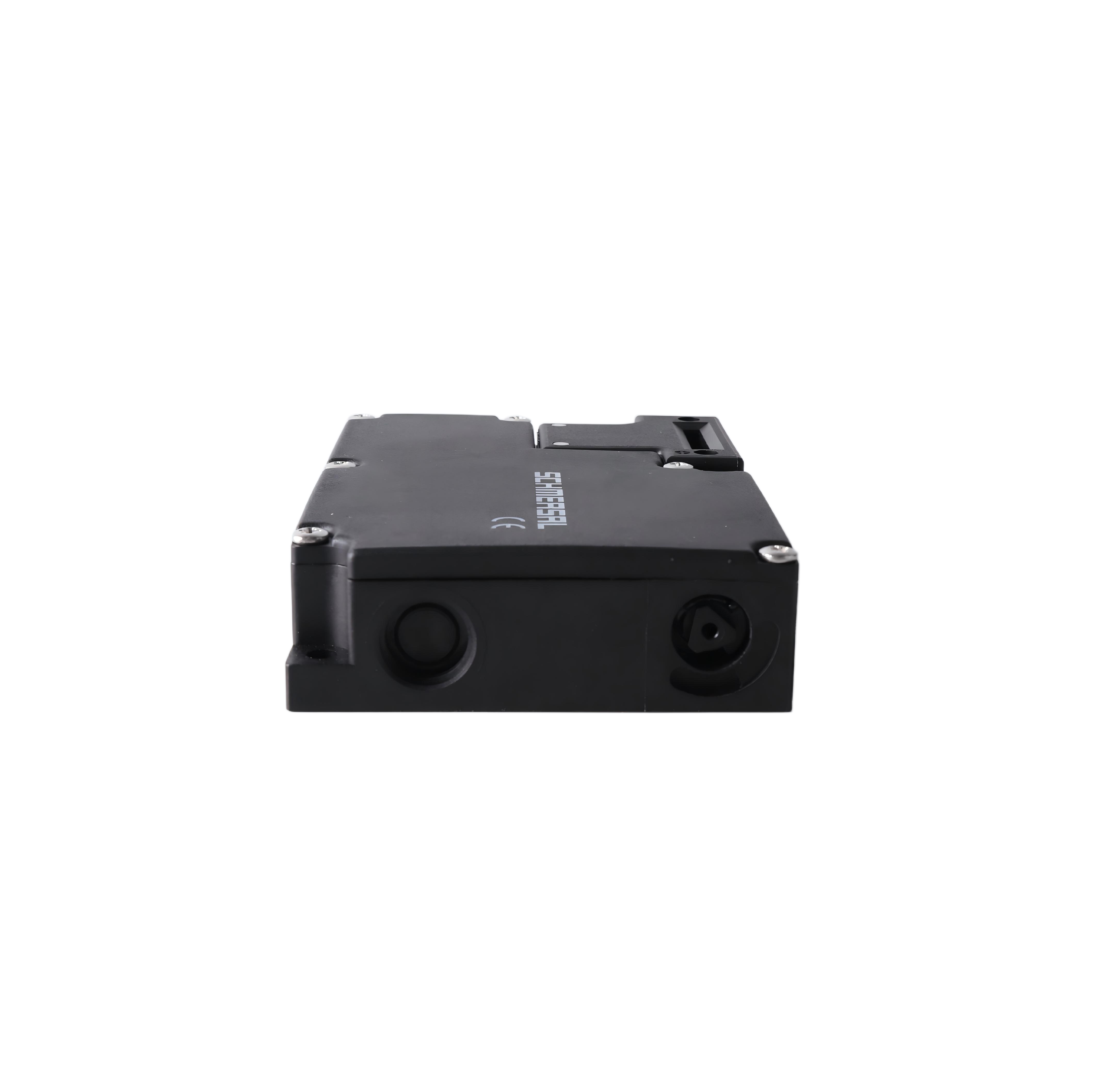

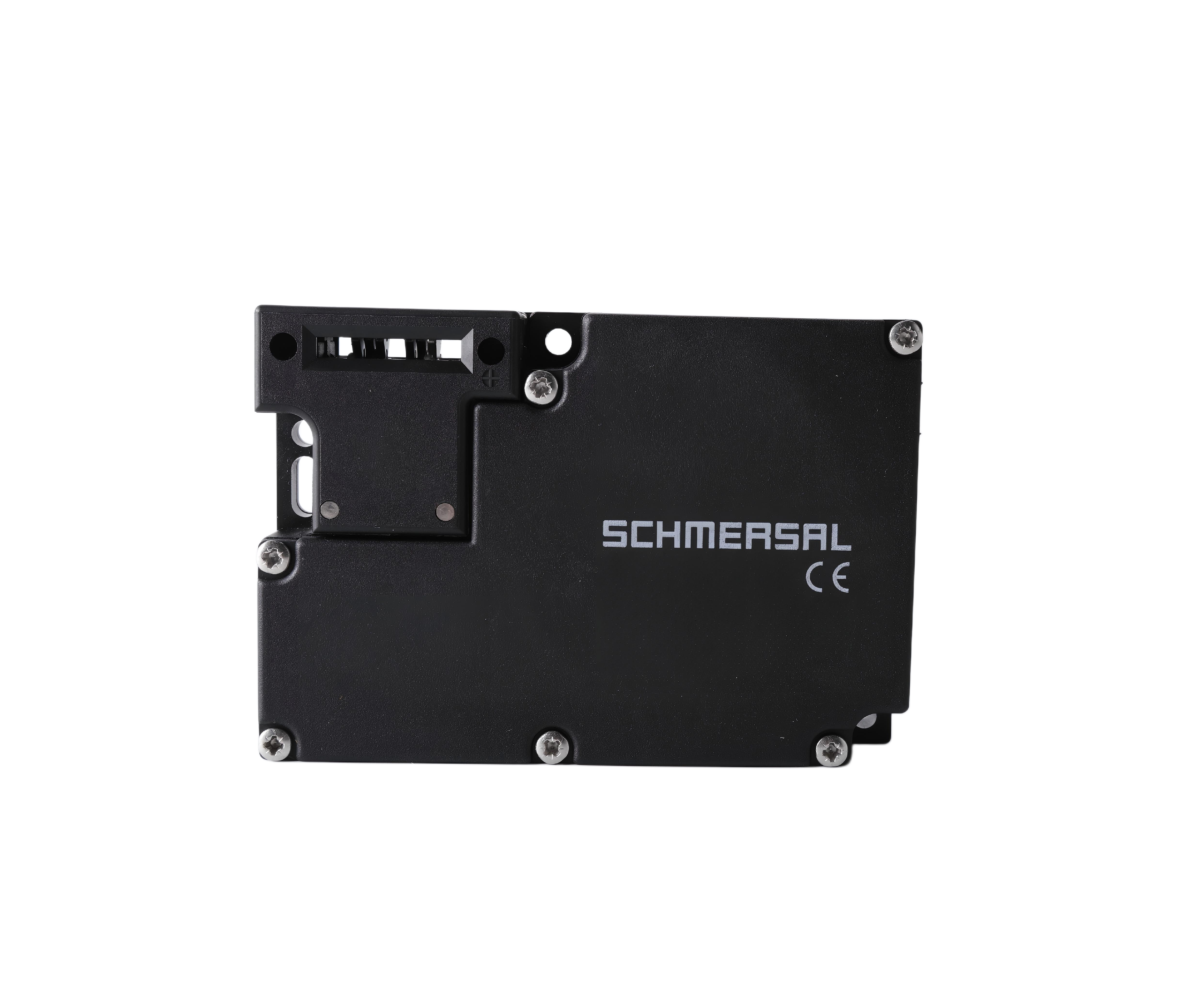

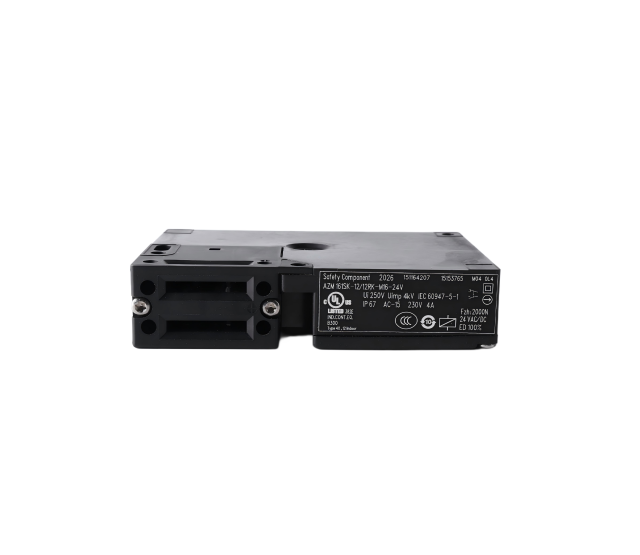

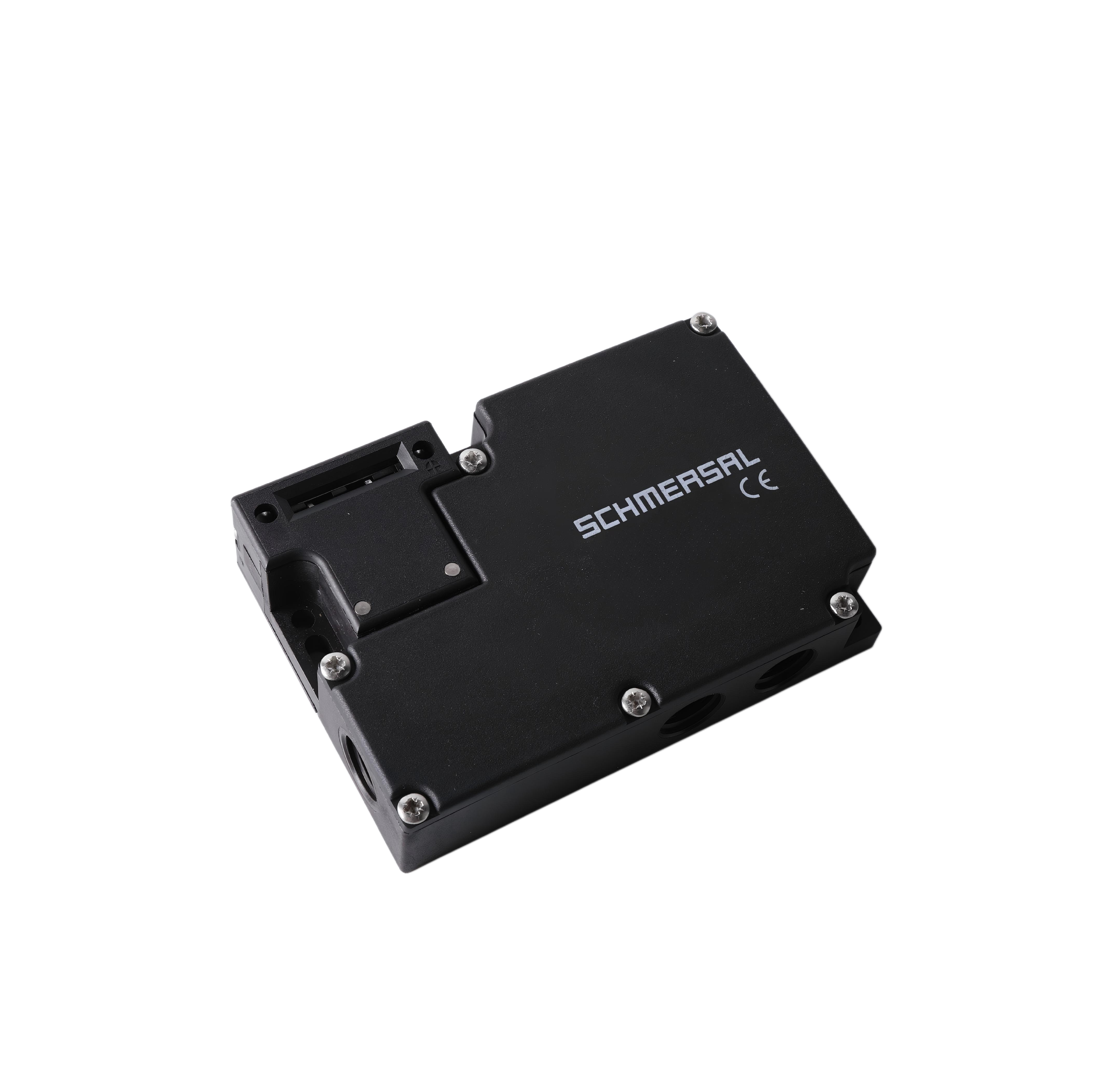

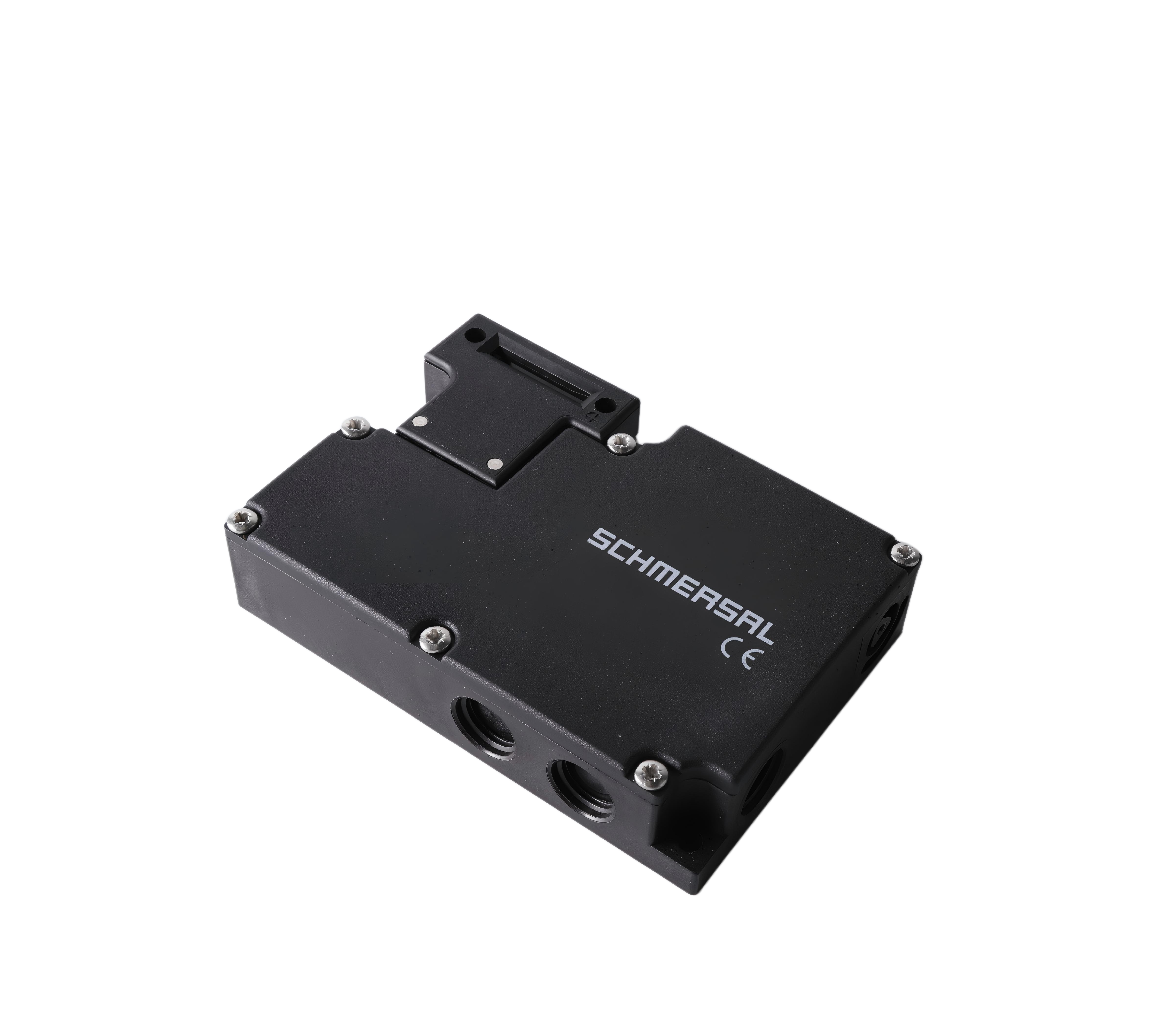

Name: SCHMERSAL Brand Safety Interlock Switch for Incinerator
Brand: JIEXI Fast Marine Service(Guangzhou) Co., Ltd
SKU: AZM161SK-12/12RK-M16-24V
Availability: InStock
Rating: 5 (1 reviews)

Description

Ordering Code

Applicable to the following types：
AZM 161 ①-②③ K④-⑤/⑥-⑦⑧

No.	Option	Description
①	CC	Cage clamps
	SK	Screw terminals
	ST	Connecting plug M 12
②	11/03	1 NO contact /4 NC contacts with connecting plug
	11/12	2 NO contact /3 NC contacts with connecting plug
	12/03	1 NO contact /5 NC contacts
	12/11	2 NO contact /3 NC contacts with connecting plug
	12/12	2 NO contact /4 NC contacts
③		Tightening force 5 N
	R	Tightening force 30 N
④		Power to unlock
	A	Power to lock
⑤		Lateral manual unlocking
	ED	Manual unlocking of cover panel
	EU	Manual unlock on the back
⑥	T	Side emergency exit
	TD	Emergency exit on the cover plate surface
	TU	Emergency exit on the back
	N	Emergency unlock
⑦	024	Us 24 VAC/DC
	110/230	Us 110/230 VAC
⑧		Without LED
	G	With LED (24 V only)

Purpose

The design intention of the electromagnetic safety lock is to prevent the movable protective door from being opened under hazardous conditions, in conjunction with the control components of the machine.

Manual unlock

When manually unlocking, rotate the triangle key 180 degrees (M5 triangle key can be ordered as an accessory) to twist the latch to the open position. Be sure to avoid interference from external factors on the operating parts. The normal locking function can only be restored after rotating the triangle key back to its initial position. After being put into use, the manual unlocking must be protected with the accompanying plastic cover.

The triangular key TK-M5 (101100887) can be ordered as an accessory.

Emergency unlock

When operating the T-shaped emergency exit in case of an emergency, you need to rotate the orange handle to the end indicated by the arrow. The emergency exit function of TD and TU models is activated by pressing the red button. At this position, the protective door can be opened. Turn the handle in the opposite direction, or pull the button back to its original position, The locked state can be unlocked. In the unlocked position, the protective door is safeguarded against accidental closure.

Technical Data

Standards： DIN EN 60947-5-1，EN ISO 14119
Enclosure： Glass fiber reinforced thermoplastic, self-extinguishing
Operating mechanism and latch： Stainless Steel 1. 4301
Tight locking force： 2,600N
Holding force： 2,000N
Tightening force： With the "R" suffix, the fastening force is 30N.
Coding level, in accordance with EN ISO 14119： Low
Protection Type： IP67
Contact materials： silver
Contact type： Electrical separation contact bridge, double-breakpoint switching contact Zb
Switching system： In accordance with DIN EN 60947-5-1, slow-release type with galvanically separated contact bridges
Connect： Screw terminal or cage clamp or connector plug
Cable type： Rigid single wire or flexible wire
Maximum cable cross-section： 0.25 ... 1.5 mm² (Including wire loops)
Cable entry： 4 × M16
Posltive break travel (unlocked)： 10 mm
Posltive break force (unlocked)： 10N for each NCconnect fitted
Actuating speed： Maximum 2 m/s
Actuating frequency： Max 1,000 operations/h
Mechanical life： >1,000,000 operations
Ambient temperature： - 25 ℃ ··· + 60 ℃
Electrical data
Adopt standard： AC-15, DC-13
Rated operating current/voltage I/U： 4 A / 230 VAC 2. 5 A / 24 VDC - ST 4-pole： 4 A / 230 VAC 4 A / 24 VDC - ST 8-pole： 2 A / 24 VDC
Rated impulse withstand voltage U： 4 kV - Connector ST 4-pole： 2.5 kV - Connector ST 8-pole： 0.8 kV
Rated insulation voltage U： 250 V - Connector ST 4-pole： 250 V - Connector ST 8-pole： 60 V
Thermal test current I： 6 A - Connector 4-pole： 4 A - Connector 8-pole： 2 A
Maximum insurance capacity： 6 A gG D-fuse - Connector 4-pole： 4 A gG D-fuse - Connector 8-pole： 2 A gG D-fuse
Required rated short-circuit current： 1,000 A
Rated control voltage U： 24 VDC 24 VAC / 50/60Hz 110 VAC / 50/60Hz 230 VAC / 50/60Hz

Installation

Three fixing holes are provided for installing the housing. The electromagnetic safety lock features double insulation. The use of a grounding wire is not permitted. It is strictly prohibited to use the electromagnetic safety lock as a limit stop. The installation location is arbitrary. However, the chosen installation location must be an opening that prevents dirt from entering. Any opening not used for the operating component must be sealed with a dustproof plug.

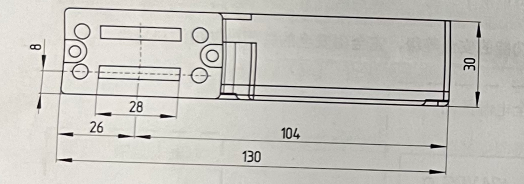

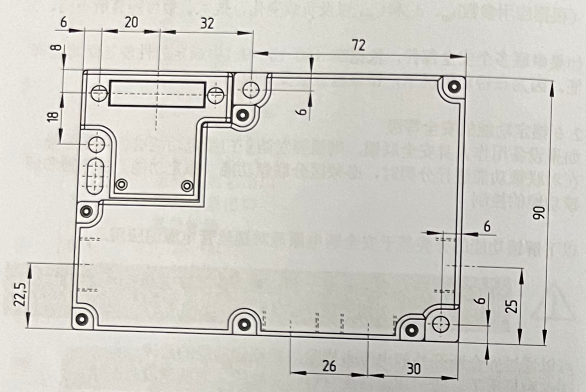

Size
All measurements in mm

Electrolysis unlocking

System Environment	Solenoid Control Power to Unlock	LED
System Environment	Solenoid Control Power to Unlock	yellow①	green②	yellow③
Safety guard open	24 V (0 V )	Off	On	Off
Door closed, actuator inserted，not locked	24 V	On	On	Off
Guard closed, actuator inserted and locked	0 V	On	Off	On

Power to lock

System Environment	Solenoid Control Power to Lock	LED
System Environment	Solenoid Control Power to Lock	yellow①	green②	yellow③
Safety guard open	0 V (24 V）	Off	Off	Off
Door closed, actuator inserted，not locked	0 V	On	Off	Off
Guard closed, actuator inserted and locked	24 V	On	On	On

Set-up and Maintenance

5.1 Function testing
The safety function of the safety switch must be tested. Prior to testing.
The following conditions must be checked and met：
1. Fitting of the solenoid Interlock and the actuator.
2. Check the integrity of the cable entry and connections.
3. Check the switch enclosure for damage.

5.2 Maintenance
It is recommended to conduct routine visual inspection and functional testing according to the following content:
1. Check for light lnstallation of the actuator and the switch.
2. Remove particles of dust and soling.
3. Check cable entry and connections.
